| Machine rating | |
| Rated operating capacity | 343 kg |
| Tipping load | 686 kg |
| Pump capacity | 37 Min. at 100% efficiency |
| System safety valve at quick connector | 207 bar |
| Maximum travel speed | 9.8 km/h |
| Engine | |
| Make/Model | Kubota/D1105-EF02 |
| Fuel/cooling | Diesel/Liquid |
| Maximum power at 3000 RPM (SAE J1349) | 18.2 kW |
| Torque at 2200 RPM (SAE J1349) | 62.8 Nm |
| Number of cylinders | 3 |
| Substitution | 1001 cu.cm |
| Fuel tank capacity | 1.1 L |
| Weight | |
| Weight Working weight | 1268 kg |
| Controls | |
| Vehicle steering system | km/rotation direction and speed controlled by two handles |
| Loader hydraulic tilt and lift | independent foot pedals |
| Front assist system | lateral movement of the right steering lever |
| Drive system | |
| Transmission | infinitely variable tandem hydrostatic piston pump driving two fully counter-rotating hydrostatic motors |
| Standard Features |
| Plug Bob Tachometer™ Frame |
| (BICS) engine/hydraulic |
| System pre-shutdown assistance |
| Hydraulics |
| High backrest cushion suspension |
| Seat gauges |
| Lift arm bracket |
| 23 x 5.70-12, 4-ply, narrow |
| Tyre work lights, front and |
| Rear cab |
| Parking brake |
| *roll-over protection structure (ROPS) |
| -Conforms to SAE-J1040 and ISO 3471 |
| Options | |
| Heated enclosed cab | 23 x 8.50-12, 6-ply, heavy duty tyres |

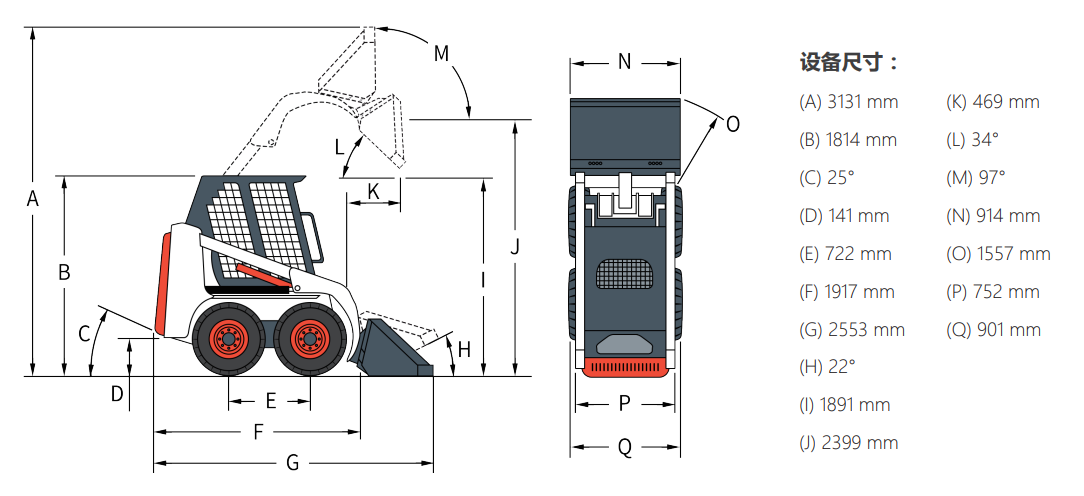

| Size |
